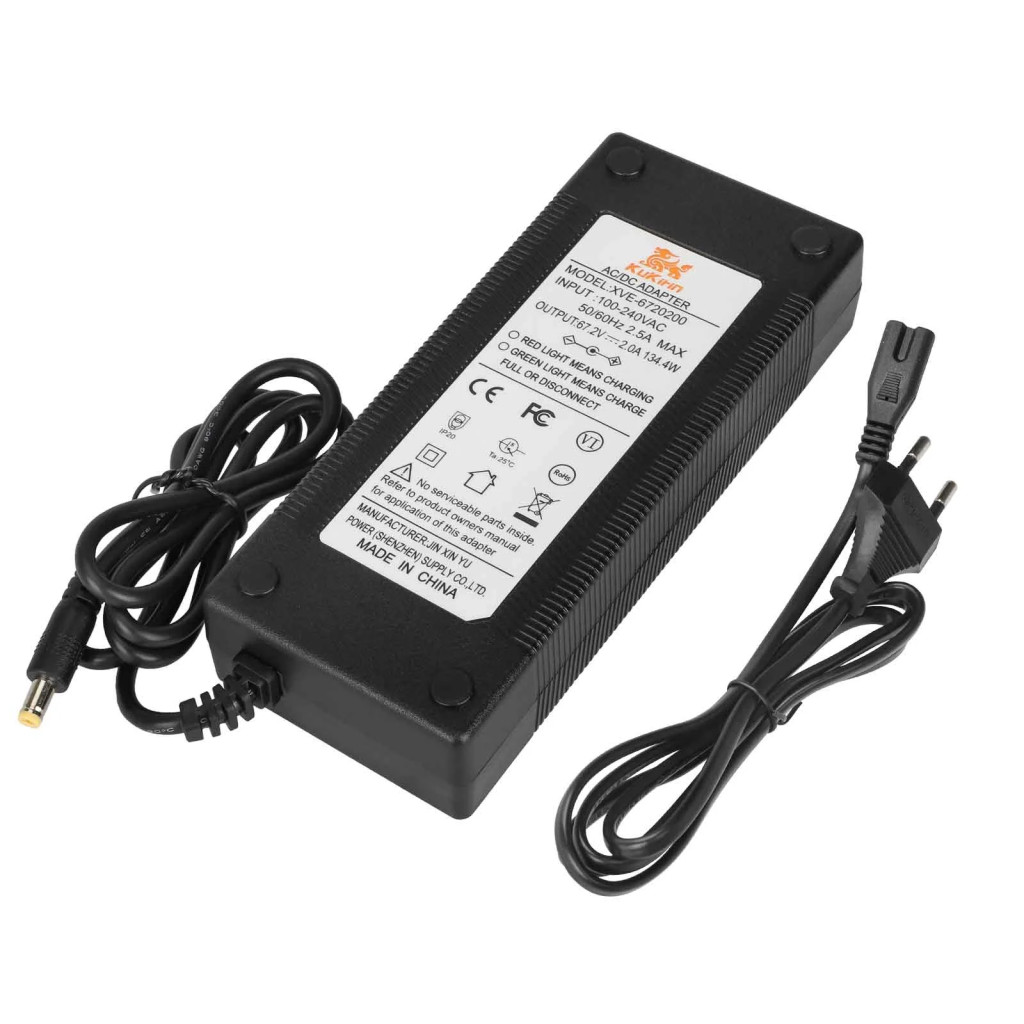

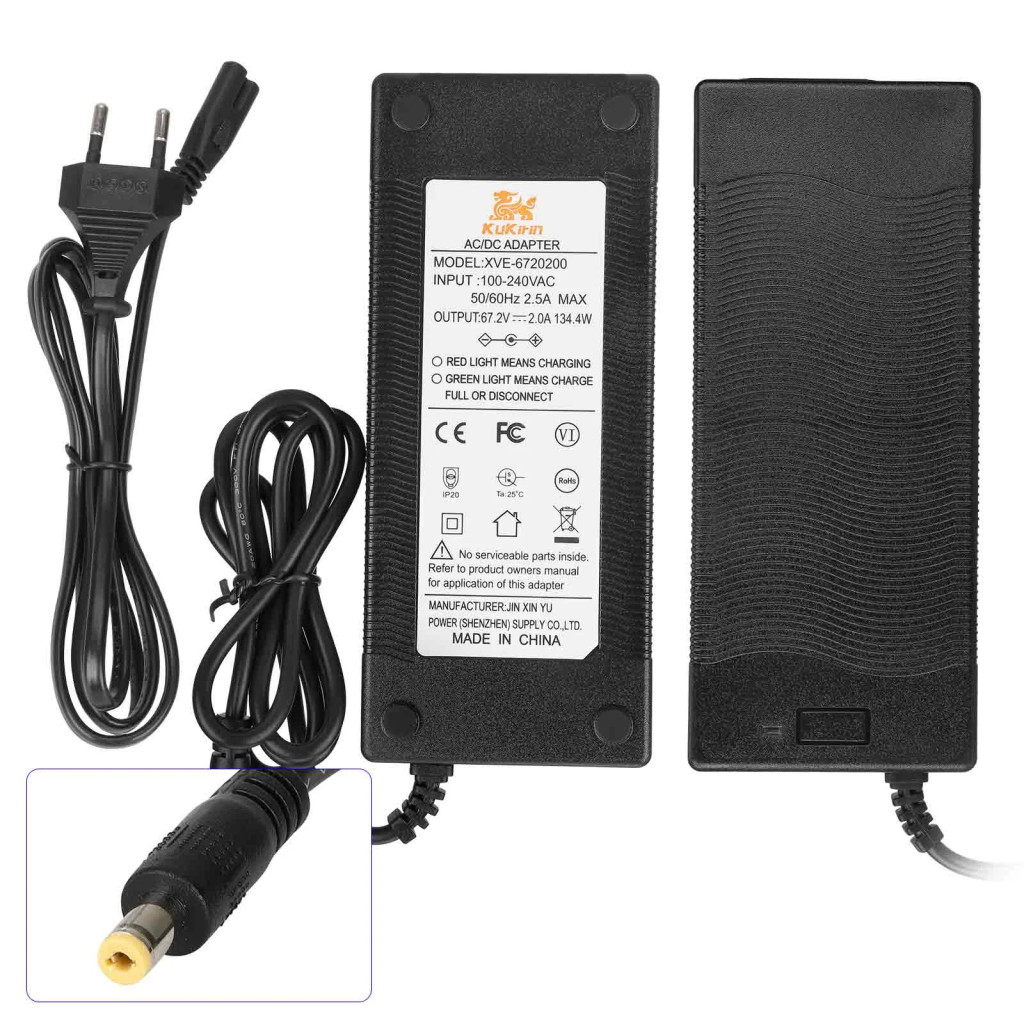

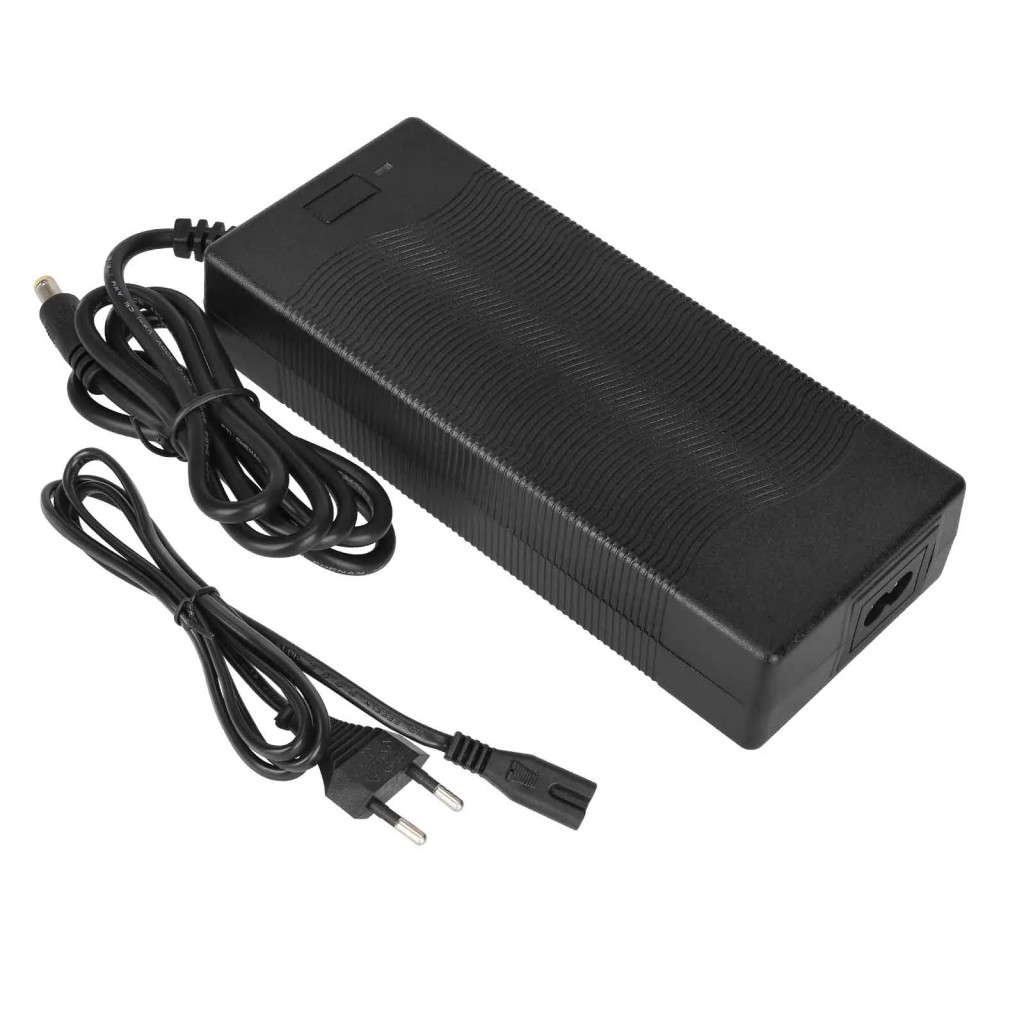

Kukirin G4 original charger (67.2V, 2A, DC5521)
Electric scooter accessory. Factory original Kukirin LI-Ion charger, for charging the 60V battery of the Kukirin G4 scooter. 60V
batteries must be charged with 67.2V. During charging, the indicator LED lights up red. If the indicator LED is green, it either does not
connect to the battery, or has charged the battery, or the battery voltage has become too low (deep discharge state)
and does not start charging for safety reasons.
Data
Input voltage: AC 100V-240V, 50/60Hz
Output voltage: DC 67.2V
Maximum charging current: 2A (depending on battery condition)
Charging power: max 134.4W
Power connector: EU standard
Roller connector: DC5521
Protection: IP20 (specifically for indoor use, not protected against water and dust)
Certifications: CE, FC, RoHs

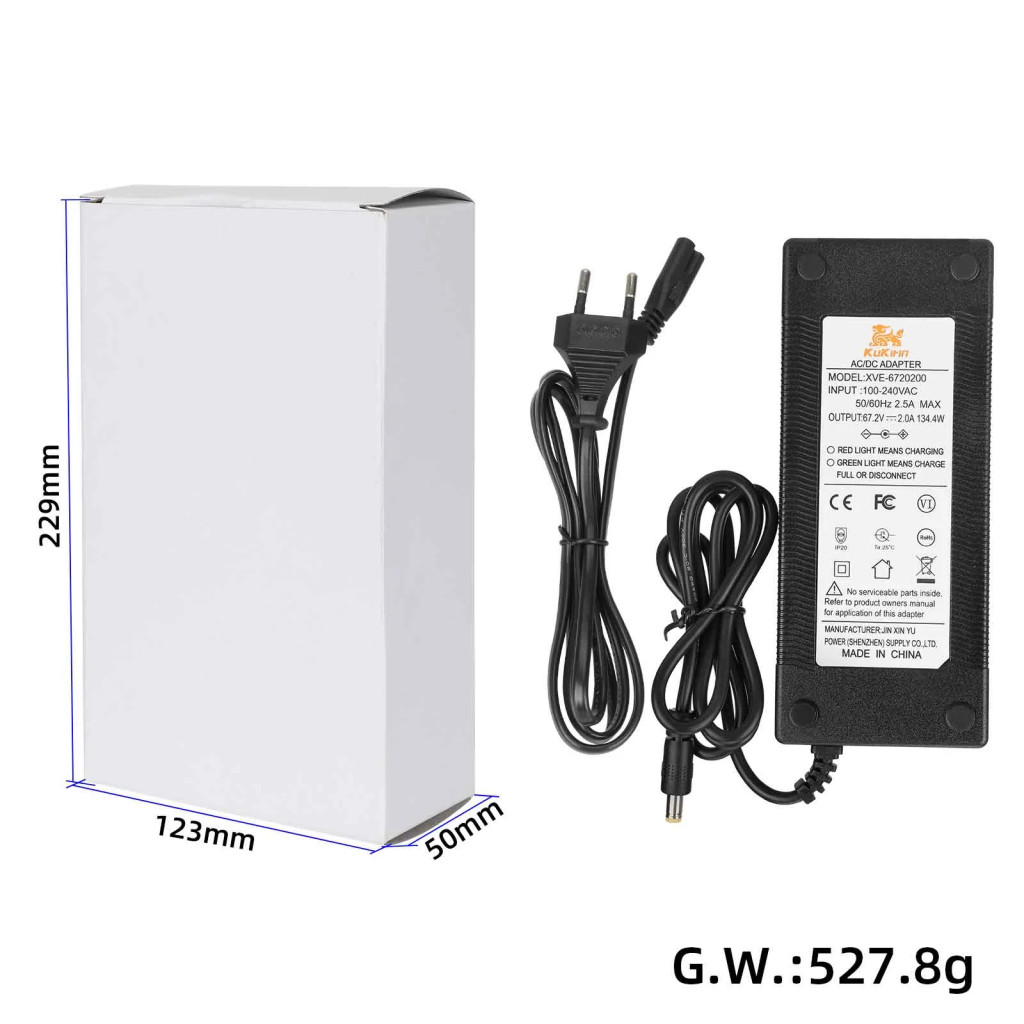

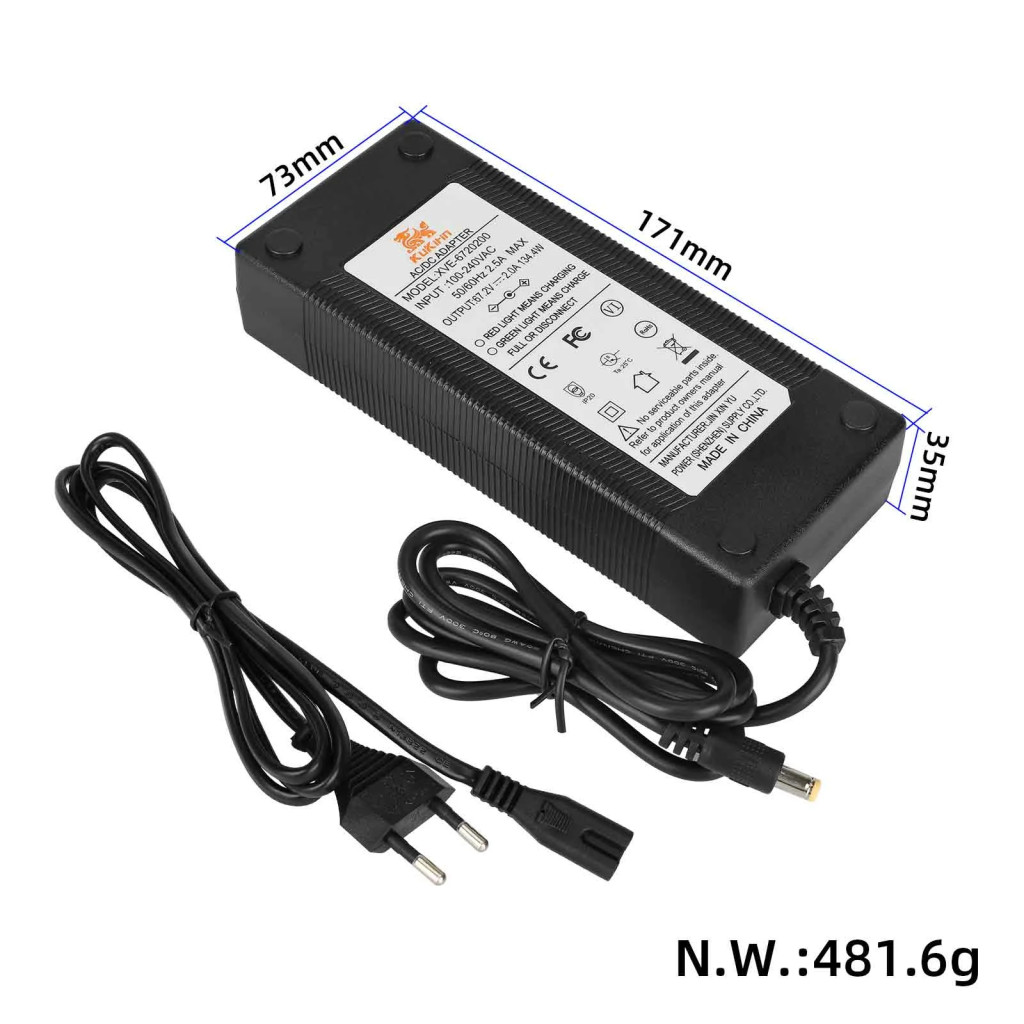

Dimensions
Length: 171 mm
Width: 73 mm
Height: 35 mm
Connector head diameter: 5.5 mm
Weight: 482 gr
