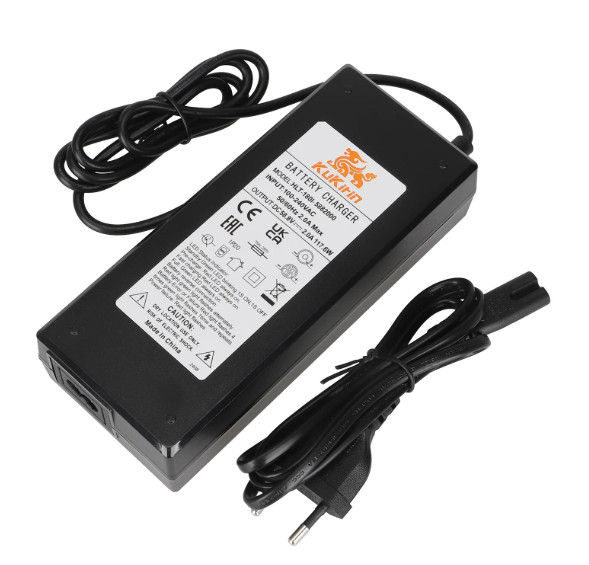

Kukirin G2 Master, G3 Pro original charger (58.8V, 2A, Julet)
Electric scooter accessory. Factory original LI-Ion charger, for charging the scooter's 52V battery. 52V batteries must be charged with 58.8V.
Meaning of the status LED lights
Ready state: LED flashes green (1 sec green light - 1 sec no light).
Charging: LED flashes red continuously.
Charging complete: LED flashes green continuously.
In case of reversed polarity (if the charging socket is connected incorrectly): LED flashes green and red alternately.
In case of battery or other error: LED flashes red 4x, then green 1x and this repeats.
Inadequate power source (e.g. low mains voltage): LED flashes red.
Data
Input voltage: AC 100V-240V, 50/60Hz
Output voltage: DC 58.8V
Maximum charging current: 2A (depending on battery condition)
Charging power: max 117.6W
Protection: IP20 (specifically for indoor use, not protected against water and dust)
Certifications: CE, UKCA, EAC
